Detail Information |
|||
|---|---|---|---|
| Place of Origin: | China | Certification: | ISO |
| Product Type: | Impregnated Activated Carbon | Materials: | Coal Based |
| BET Surface Area: | 900-1100m²/G | Appearance: | Black Cylindrical Pellets |
| Application: | Mercury Vapor Adsorption | ||
| Packaging Details: | 500 Kg Per Bulk Bag; 25 Kg Per Bag | ||
| Highlight: | Impregnated Extruded Activated Carbon, Mercury Vapor Adsorption Activated Carbon, Extruded Impregnated Activated Carbon | ||
Product Description

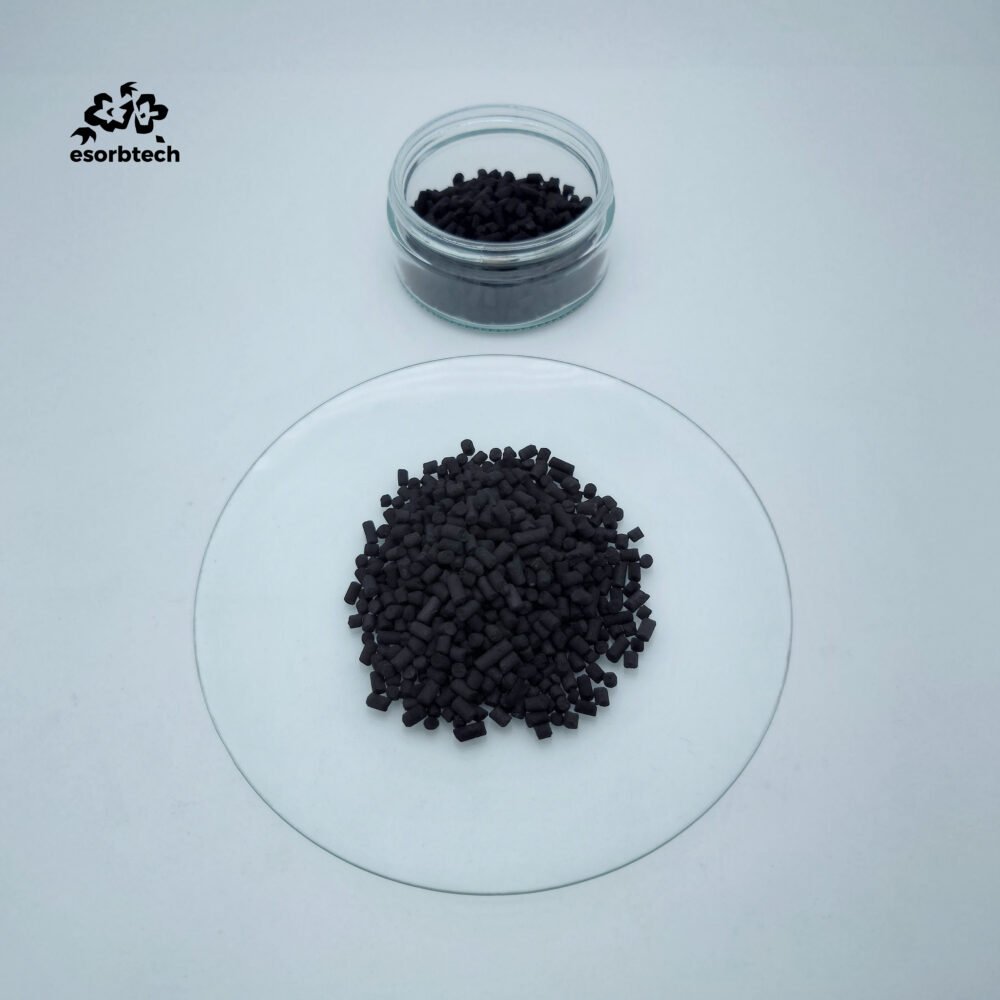

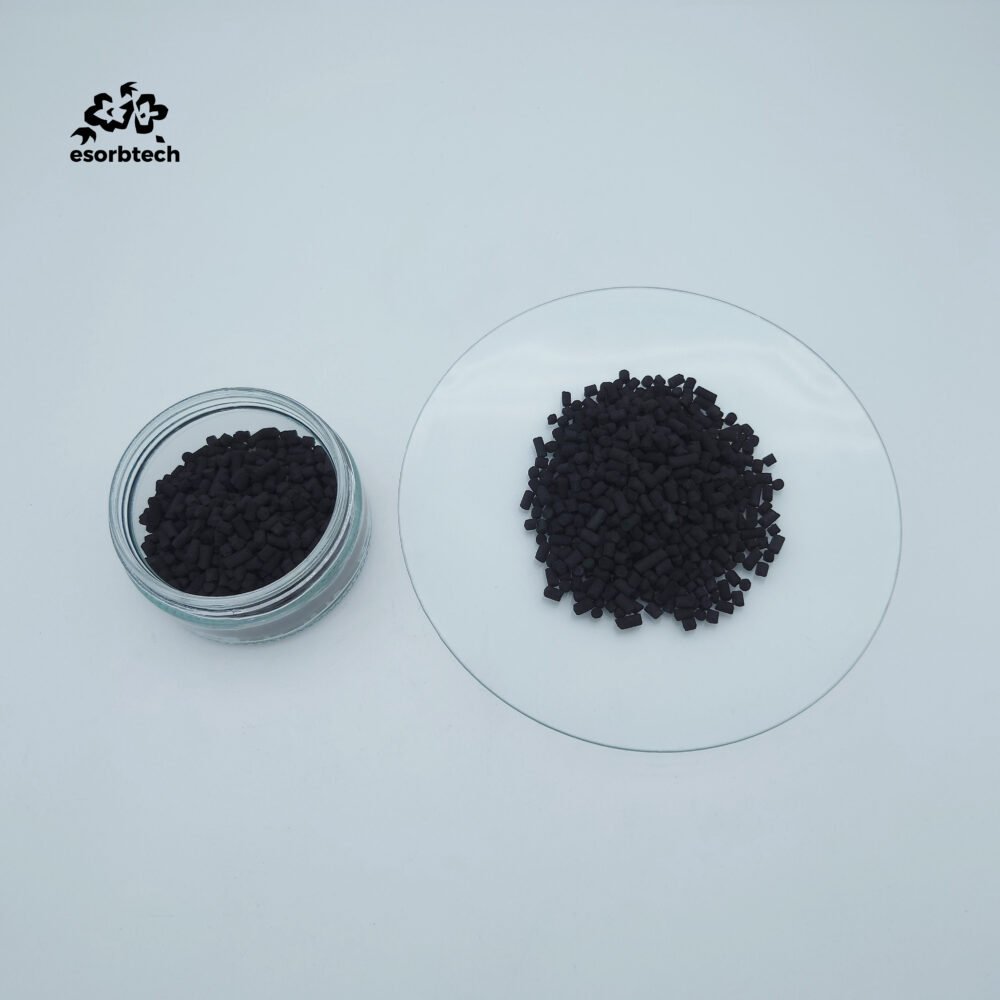

Impregnated Extruded Activated Carbon for Mercury Vapor Adsorption
Product Introduction
Impregnated Extruded Activated Carbon for Mercury Vapor Adsorption is a high-performance activated carbon specifically formulated for the capture of elemental mercury (Hg⁰), oxidized mercury compounds, and organic mercury vapors.
It is widely used in industrial off-gas treatment, flue gas purification, natural gas processing, waste incineration, chlorine-alkali plants, and mercury-containing exhaust control systems.
Through precise impregnation with specialized catalytic agents, this activated carbon enables the oxidation, adsorption, and stabilization of mercury vapor, ensuring safe long-term immobilization.
Its cylindrical pellet structure provides low pressure drop, high hardness, and excellent durability, making it suitable for continuous operation under high-temperature or variable-moisture conditions.
| Specification | Value |
| Mean Particle Diameter, mm | 4.0 |
| BET Surface Area, ㎡/g | 900-1100 |
| Mercury Vapor Adsorption Efficiency, % | 95 (min) |
| Moisture, % | 5 (max) |
| Bulk Density, kg/m³ | 450-550 |
| Hardness, % | 95 (min) |
Note: Core property ranges are stable across common impregnation systems (e.g., sulfur-based, halogen-based, and catalytic systems), ensuring consistent performance in mercury removal applications.
Features
-
High Mercury Capture Efficiency: Effectively removes Hg⁰ and Hg²⁺ via catalytic oxidation and strong chemisorption.
-
Long-Term Stability: Chemisorbed mercury remains immobilized, preventing re-emission even under temperature fluctuations.
-
High Surface Area & Strong Structure: Cylindrical pellets offer excellent adsorption kinetics, low attrition, and stable airflow.
-
Moisture-Resistant Performance: Maintains activity under varying humidity typical of industrial exhaust environments.
-
Safe & Reliable: Designed to prevent secondary pollution and compatible with continuous operation in industrial purification systems.
Applications
-
Flue Gas Mercury Control: Coal-fired power plants, industrial boilers, waste incinerators.
-
Chemical & Chlor-Alkali Industry: Removal of mercury from electrolytic cells and process off-gas streams.
-
Natural Gas Processing: Capture of mercury to protect downstream aluminum heat exchangers and catalysts.
-
Metal Processing & Gold Smelting: Mercury vapor removal from extraction, refining, and thermal processes.
-
Environmental Safety Systems: Used in exhaust purification units for laboratories and mercury storage facilities.
Manufacturing Process
-
High-Purity Activated Carbon Base: Extruded pellets with controlled pore distribution for enhanced mercury affinity.
-
Specialized Impregnation: Sulfur-based, halogen-based, or catalytic compounds applied to boost Hg⁰ oxidation and capture.
-
Thermal Curing & Stabilization: Ensures uniform impregnant distribution and long-term retention capacity.
-
Strict Quality Control: Each batch tested for hardness, surface area, moisture, and mercury adsorption efficiency.
Packaging Options
-
25 kg Bags: Multi-layer kraft paper bags with PE inner liner for moisture protection.
-
500 kg Jumbo Bags: Suitable for large-scale flue gas and industrial gas purification systems.
-
Custom Packaging: Available according to system loading or environmental safety requirements.
