Detail Information |
|||
|---|---|---|---|
| Place of Origin: | China | Certification: | ISO |
| Product Type: | Impregnated Activated Carbon | Materials: | Coal-based |
| BET Surface Area: | 900-1100m²/G | Appearance: | Black Cylindrical Pellets |
| Application: | VOC & Industrial Odor Removal | ||
| Packaging Details: | 500 Kg Per Bulk Bag; 25 Kg Per Bag | ||
| Highlight: | VOC impregnated activated carbon, Broad Spectrum Removal Extruded Activated Carbon, Industrial Odor Removal Activated Carbon Pellets | ||
Product Description

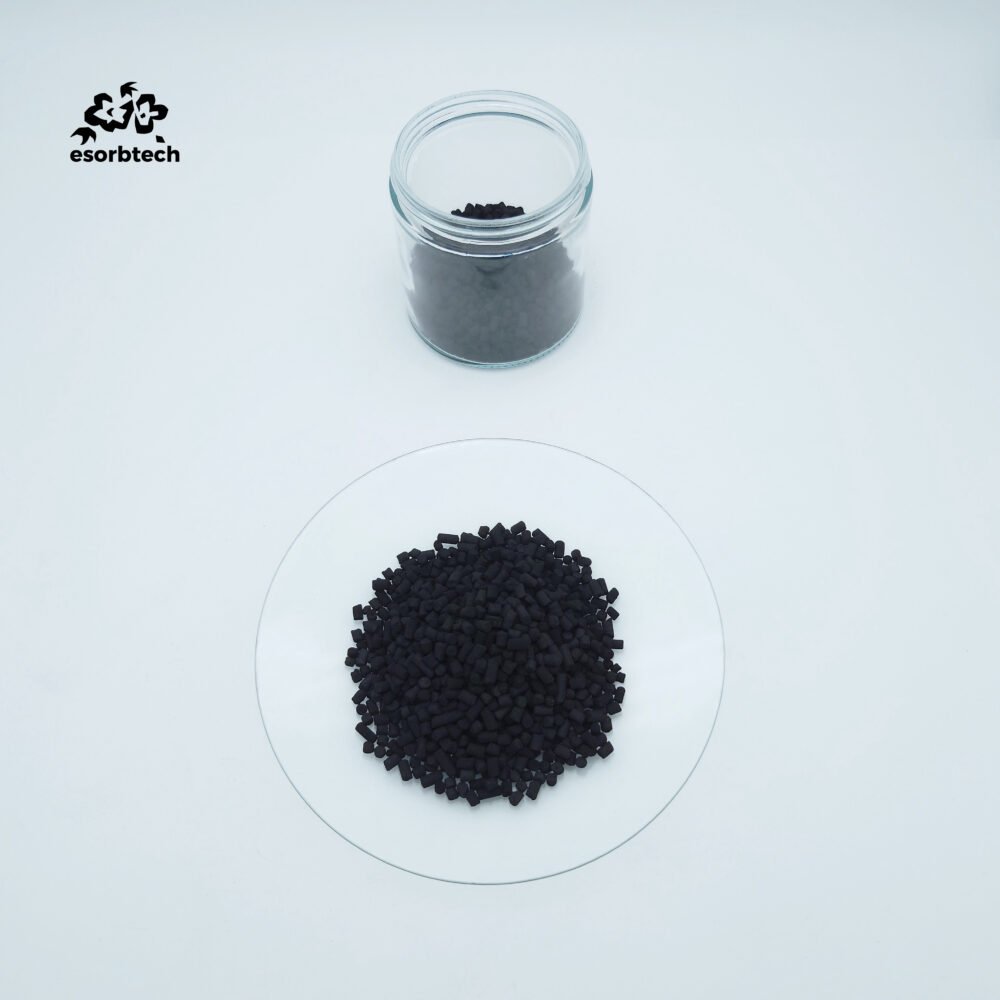

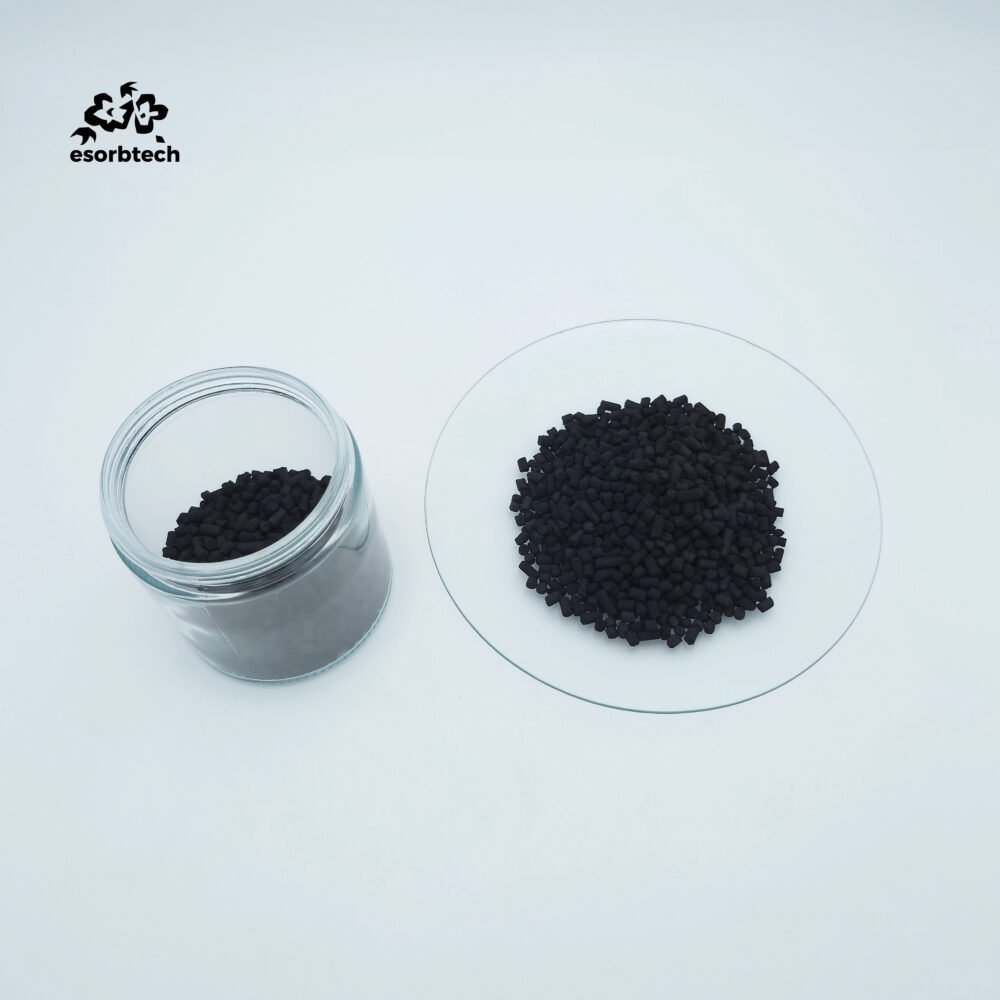

Broad-Spectrum Impregnated Extruded Activated Carbon for VOC & Industrial Odor Removal
Broad-Spectrum Impregnated Extruded Activated Carbon is a versatile pelletized activated carbon designed for simultaneous removal of VOCs, odorous organic compounds, sulfur-containing gases, nitrogenous odors, and mixed industrial contaminants.
Its surface is treated with a multi-functional impregnation system, enabling physical adsorption, catalytic oxidation, and chemical neutralization across a wide range of gas-phase pollutants.
The product features high surface area, strong mechanical strength, and uniform cylindrical pellets suitable for industrial exhaust purification, odor control systems, VOC scrubbers, chemical processing ventilation, and multi-contaminant treatment units.
It serves as an effective broad-spectrum solution for environments where the contaminant composition fluctuates or contains multiple odorants.
| Specification | Value |
|---|---|
| Mean Particle Diameter, mm | 4.0 |
| VOC Removal Efficiency, % | 90 (min) |
| BET Surface Area, ㎡/g | 900-1100 |
| Odor Removal Efficiency, % | 90 (min) |
| Moisture, % | 5 (max) |
| Bulk Density, kg/m³ | 450-550 |
| Hardness, % | 95 (min) |
Note: Impregnation types may vary depending on target odor mixture; the above physical indices remain stable across all formulations.
- Broad-Spectrum Removal Capability: Effective against VOCs, aldehydes, ketones, sulfur compounds, amines, and miscellaneous industrial odors.
- Multi-Mechanism Purification: Combines physical adsorption, catalytic conversion, and chemical neutralization to maximize performance in mixed-gas environments.
- Stable Performance Under Humidity: Maintains activity in variable-humidity conditions typical of industrial exhaust and odor control systems.
- High Mechanical Strength: Cylindrical pellets minimize dust generation, ensuring stable pressure drop and long operational life.
- Activated Carbon with Enhanced Functionality: Impregnation treatment significantly expands pollutant spectrum beyond that of conventional activated carbon.
- Safe for Continuous Industrial Operation: High structural stability and low ignition risk make it suitable for long-duration usage.
- Industrial VOC Treatment: Removal of toluene, ethyl acetate, IPA, and mixed organic vapors in chemical and coating industries.
- Odor Control Systems: Effective for sulfur odors (mercaptans), nitrogen-based odors (amines), and organic decomposition gases in wastewater treatment and food processing.
- Mixed-Gas Purification: Suitable for exhaust streams containing multiple odorants or fluctuating pollutant concentrations.
- Air Filtration & Scrubber Units: Used in HVAC odor filters, canisters, packed beds, and activated carbon towers.
- Chemical Process Ventilation: Provides broad-spectrum protection in laboratories, workshops, and chemical storage rooms.
- High-Quality Carbon Base: Extruded activated carbon with controlled pore structure ensures strong adsorption performance.
- Precision Impregnation: Formulated with broad-spectrum active components to target VOCs and multiple odor categories.
- Thermal Stabilization: Low-temperature curing preserves active sites and ensures chemical stability.
- Quality Assurance: Each batch tested for BET surface area, hardness, moisture, and odor/VOC removal efficiency.
- 25 kg Bags: Moisture-proof multi-layer kraft paper bags with PE inner liner.
- 500 kg Jumbo Bags: Suitable for industrial-scale odor and VOC treatment systems.
- Customized Packaging: Available upon request to meet specific equipment or system requirements.
