Detail Information |
|||
|---|---|---|---|
| Place of Origin: | China | Certification: | ISO |
| Product Type: | Modified Pelletized Adsorbent | Materials: | Oxide Based |
| BET Surface Area: | 400–600 ㎡/G | Appearance: | Light Grey Cylindrical Pellets |
| Application: | Pharmaceutical & Coating Solvent Recovery | ||
| Packaging Details: | 500 Kg Per Bulk Bag; 25 Kg Per Bag | ||
| Highlight: | Modified Pelletized Adsorbent, High Solvent Adsorption Efficiency Inorganic Adsorbent, Superior Regeneration Durability Adsorption Material | ||
Product Description

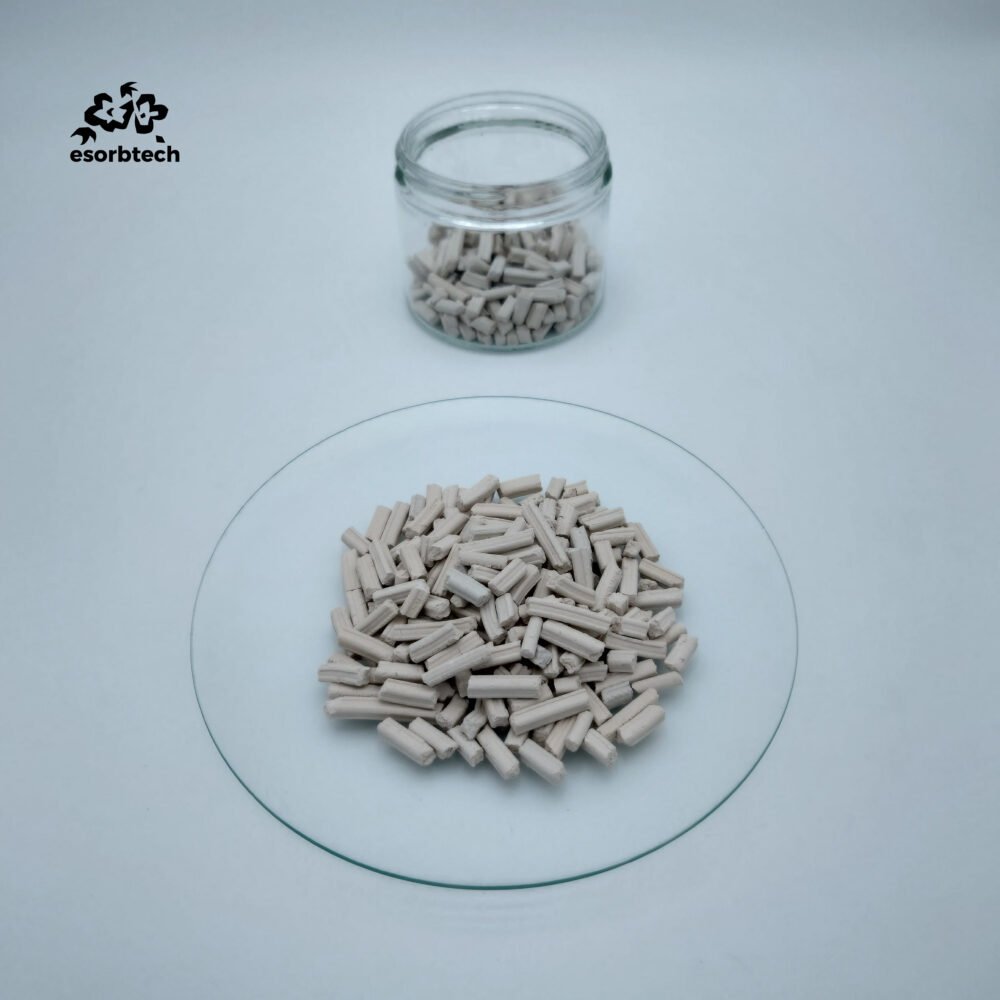

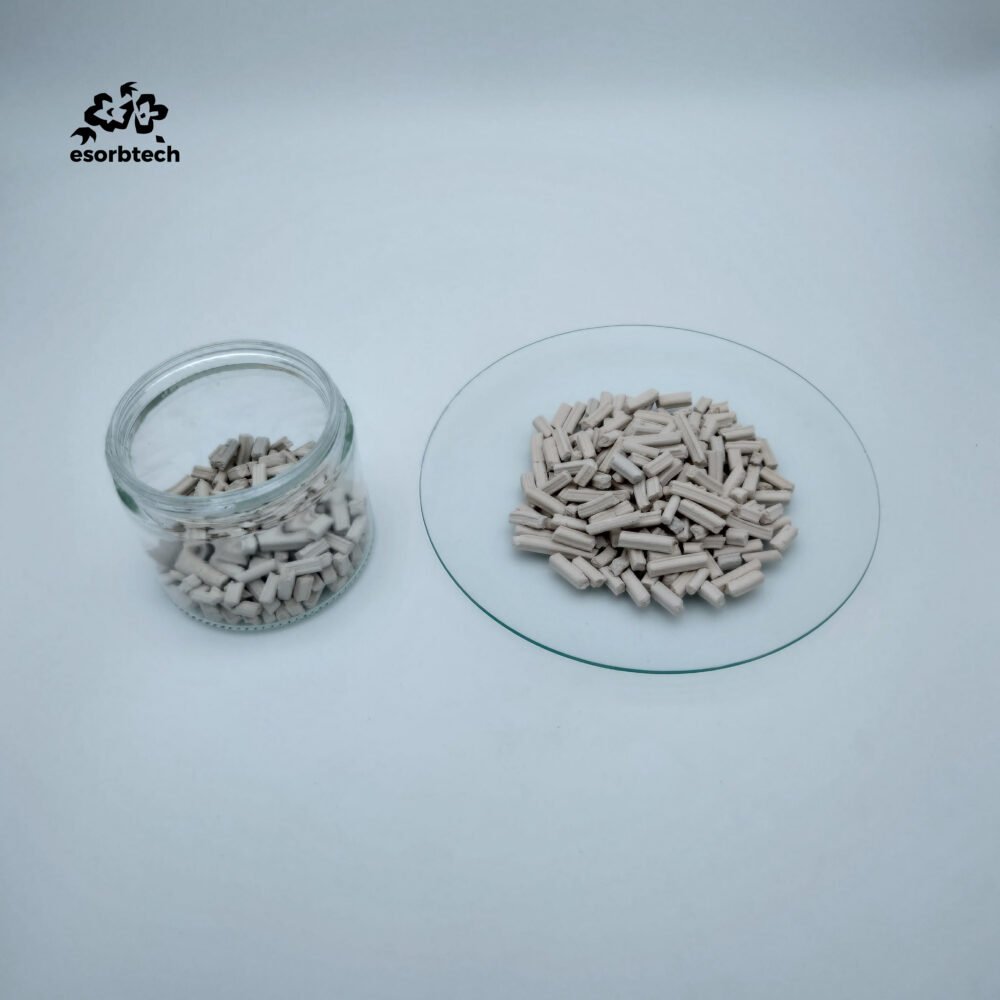

Modified Pelletized Adsorbent for Pharmaceutical & Coating Solvent Recovery
The Modified Pelletized Adsorbent is a high-purity inorganic adsorbent specifically designed for cyclic adsorption and recovery of organic solvents such as ethyl acetate, isopropanol (IPA), and methyl ethyl ketone (MEK). Manufactured from refined composite oxides with a precisely controlled pore structure, this material offers high surface area, stable mechanical strength, and exceptional regeneration durability. Its smaller cylindrical pellets (3-4 mm) provide improved contact efficiency and rapid mass transfer, making it ideal for pharmaceutical, coating, and fine chemical processes where high-purity solvent recovery and VOC emission control are essential.
Specifications
| Specification | Value |
|---|---|
| Mean Particle Diameter, mm | 4.0 |
| Appearance | Light Grey Cylindrical Pellets |
| BET Surface Area, ㎡/g | 400-600 |
| Pore Volume, cm³/g | 0.35-0.55 |
| Thermal Stability, ℃ | 350 (min) |
| Bulk Density, kg/m³ | 500-600 |
| Regeneration Cycles (≥90% efficiency) | 250 (min) |
Note: Specifications and particle sizes can be customized according to customer requirements.
Features
- High Solvent Adsorption Efficiency: Optimized micropore and mesopore distribution ensures excellent adsorption of polar and semi-polar organic solvents such as IPA and ethyl acetate.
- Superior Regeneration Durability: Maintains ≥ 90% adsorption performance after more than 250 regeneration cycles under thermal or vacuum desorption conditions.
- High Purity & Safety: Non-carbon, low-dust material eliminates ignition risks and contamination of recovered solvents.
- Fine Pellet Size: Smaller cylindrical pellets enhance surface contact area and shorten adsorption/desorption cycles.
- Stable Mechanical Strength: Uniform pellets resist crushing and attrition in high-flow cyclic adsorption systems.
Applications
- Pharmaceutical Solvent Recovery: Used in closed-loop systems for recovery and reuse of isopropanol, and ethyl acetate in API and formulation plants.
- Coating & Printing Industry: Applied in VOC control and solvent recycling units for paints, inks, and varnishes.
- Fine Chemical Production: Ideal for solvent vapor recovery from reactors, distillation vents, and purification processes.
- Activated Carbon Replacement: Provides higher thermal resistance, cleaner regeneration, and longer operational life compared to traditional carbon pellets.
Manufacturing Process
- High-Purity Material Base: Produced from composite alumina-silica matrix with minimal metal impurities.
- Optimized Pore Development: Balanced microporous and mesoporous network tailored for solvent molecule size and polarity.
- Precision Thermal Processing: Controlled sintering ensures consistent pellet hardness, uniform porosity, and low ignition loss.
- Rigorous Quality Control: Each batch is tested for surface area, pore volume, solvent adsorption capacity, and regeneration stability.
Packaging Options
- 25 kg Bags: Multi-layer kraft bags with PE inner liner for moisture protection and easy handling.
- 500 kg Jumbo Bags: Suitable for large-scale solvent recovery and VOC treatment systems.
- Customized Packaging: Available upon request to fit system loading and operational needs.
